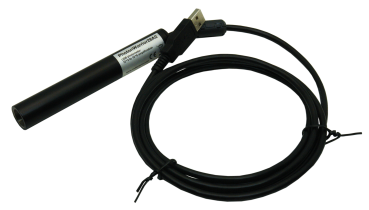

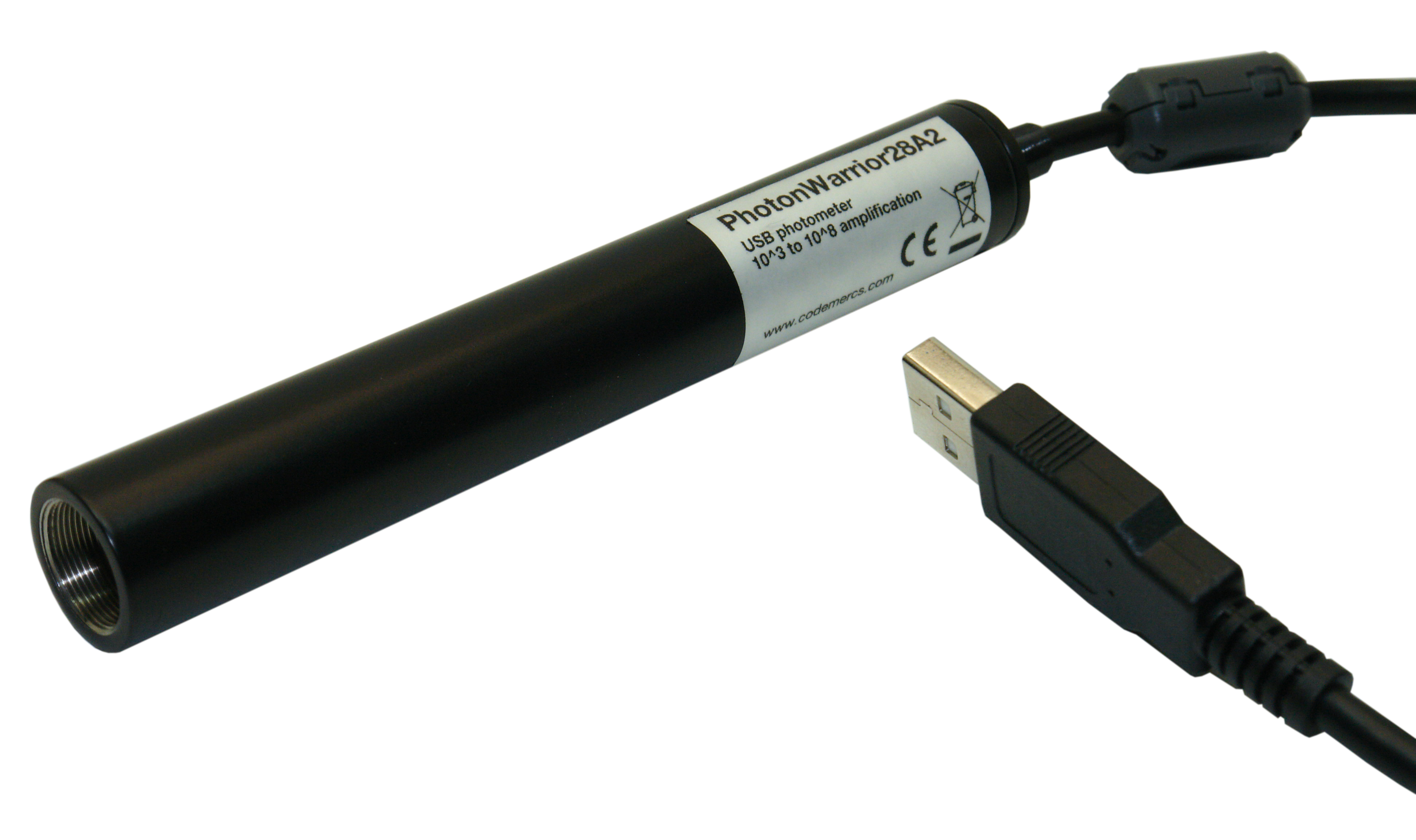

PhotonWarrior28A2 is a photo amplifier with USB interface.

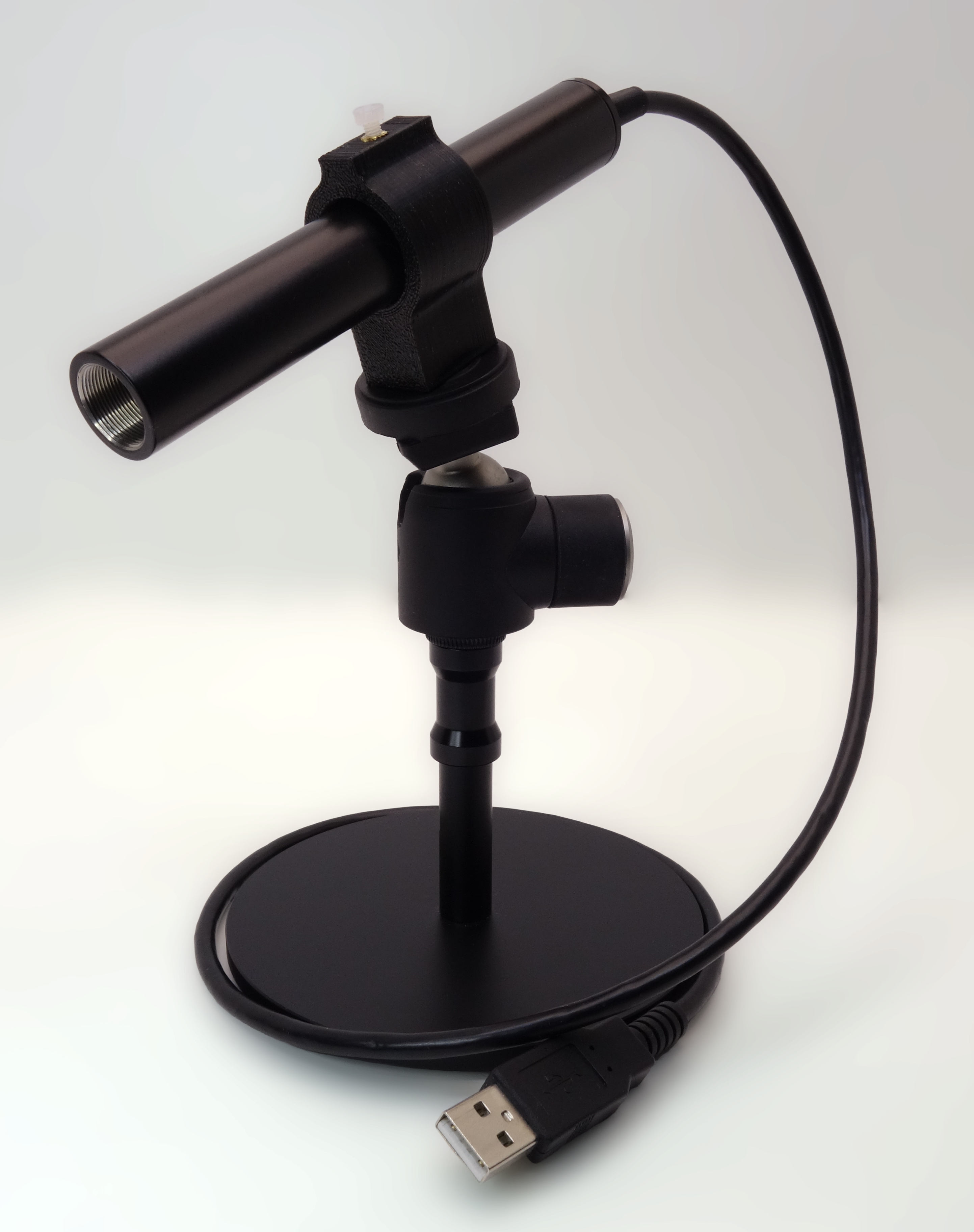

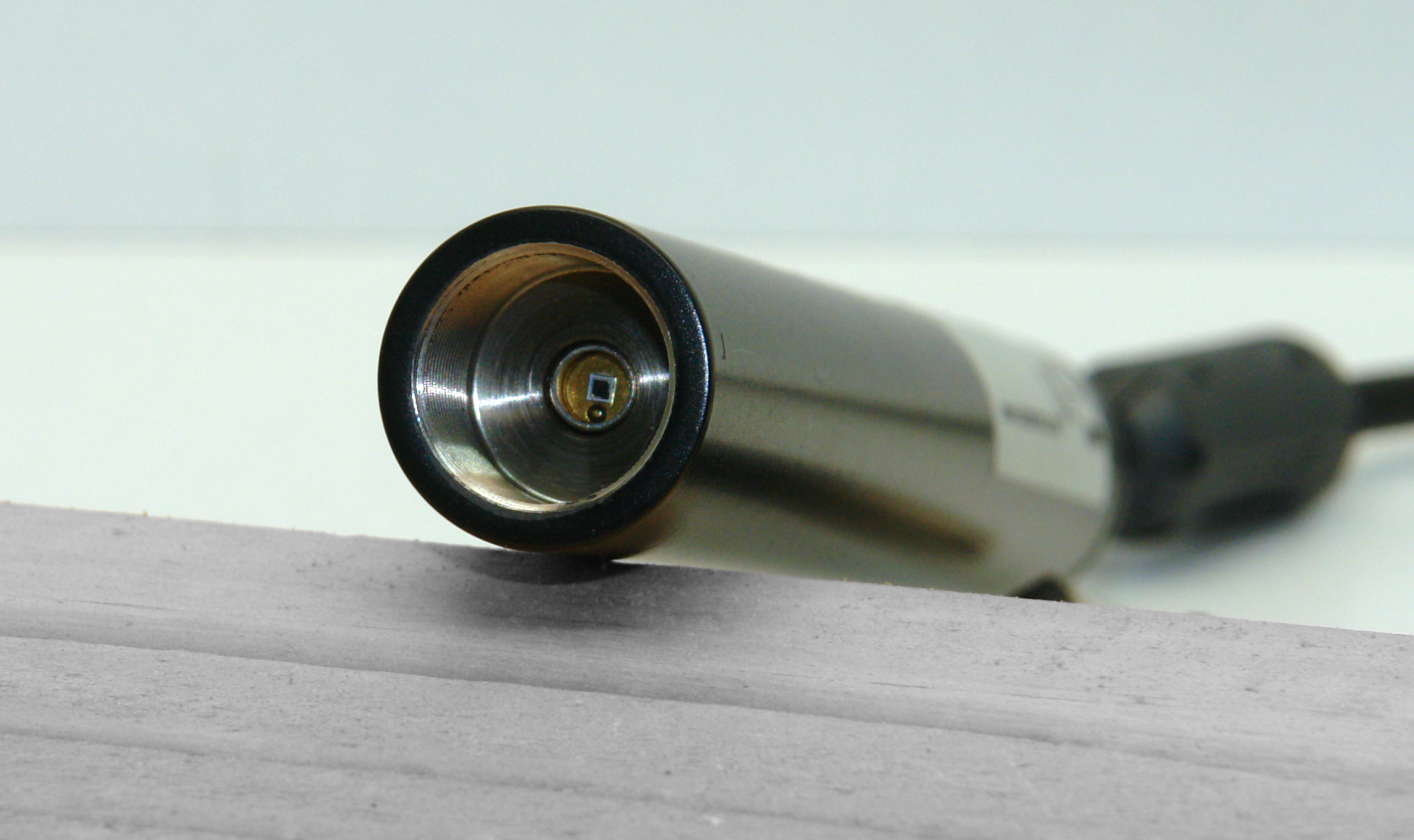

The compact design as a steel tube makes it compatible with most lab equipment. In front of the photo diode it has a SM05 thread to easily mount optical elements.
Connection is just via USB. Power supply and data transport both are done both over the USB. Data is transmitted at 1 kHz with 12 bit resolution. No external power source or A/D converter is necessary.
PhotonWarrior28A2 really means it with plug and play as it identifies to the computer as a joystick. This allows to run it with standard system drivers and access the data via the joystick API of the operating system.
Aplification can be set in 6 steps from 10^3 to 10^8.
- USB Standard, Full Speed
- 12 bit resoultion
- 1 kHz data rate (internal 16 x oversampling at 16 kHz with decimation filter)
- SM05 internal thread for optical elements
- Dimensions: 123 mm x 17.9 mm

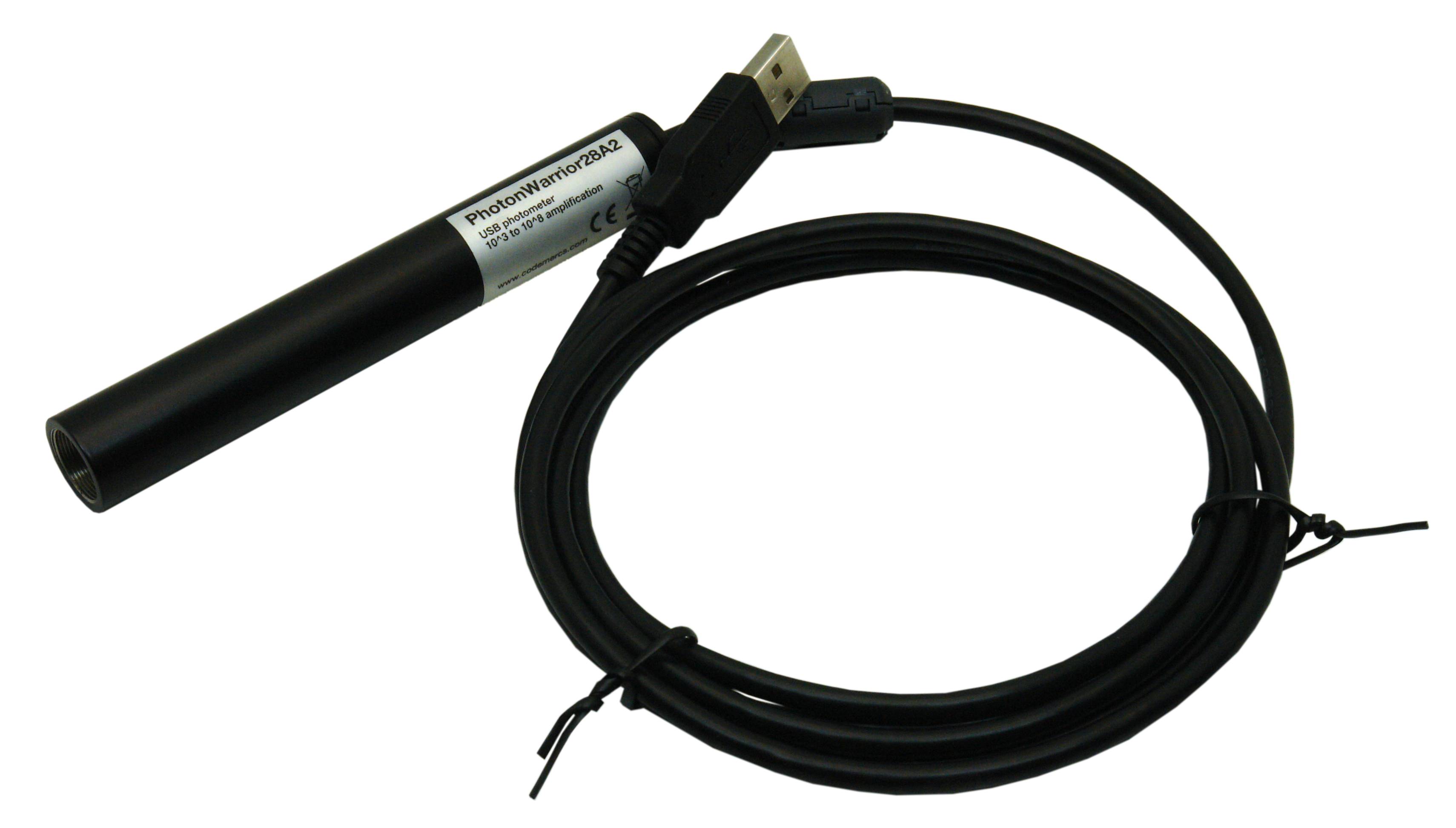

- ca. 1.8 m USB cable
- USB type A plug
