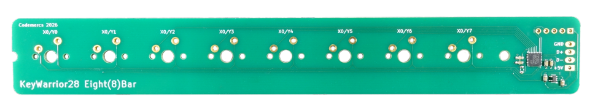

KeyWarrior28 Eight(8)Bar is a module for building auxiliary keypads with up to 8 keys that add extra functions to a PC, laptop or SBC.
The keys can be programmed with the KeyWarrior28 editor. Two additional key levels (FN), up to 19 macros, media controls, and button mouse are available.

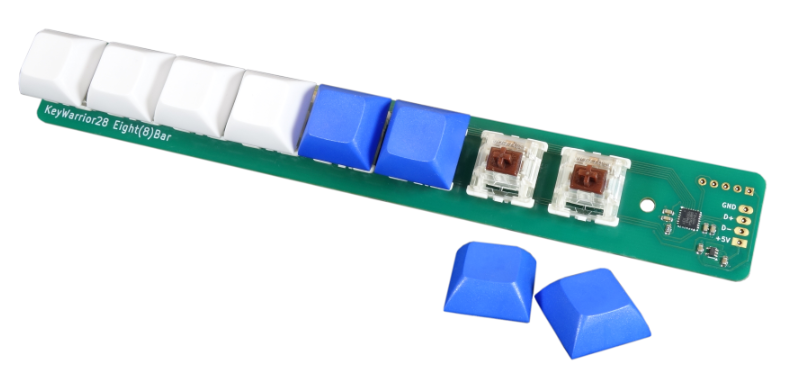

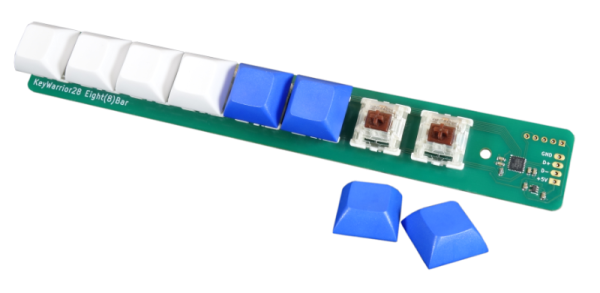

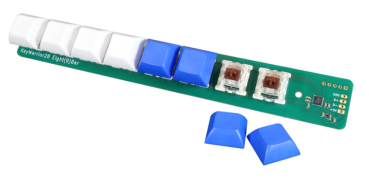

Up to 8 MX style switches (5-pin) can be soldered to the module as needed (not included). The KeyWarrior28 is ready for use, only a USB cable and the switches need to be isntalled.
Technical details:
- USB standard keyboard (HID), Full Speed
- 8 positions for MX series mechanical switches (5-pin) or compatible
- Up to 19 macros with up to 31 key codes each
- 3 keyboard levels (FN)
- Key functions and macros programmable via software
- Mouse function via keys
- Size: 25 x 184 mm
